Real-time high-energy physics applications on DECPeRLe-1 programmable active memory
Jean Vuillemin1996, Journal of VLSI Signal Processing
Sign up for access to the world's latest research
checkGet notified about relevant papers
checkSave papers to use in your research
checkJoin the discussion with peers
checkTrack your impact
Abstract

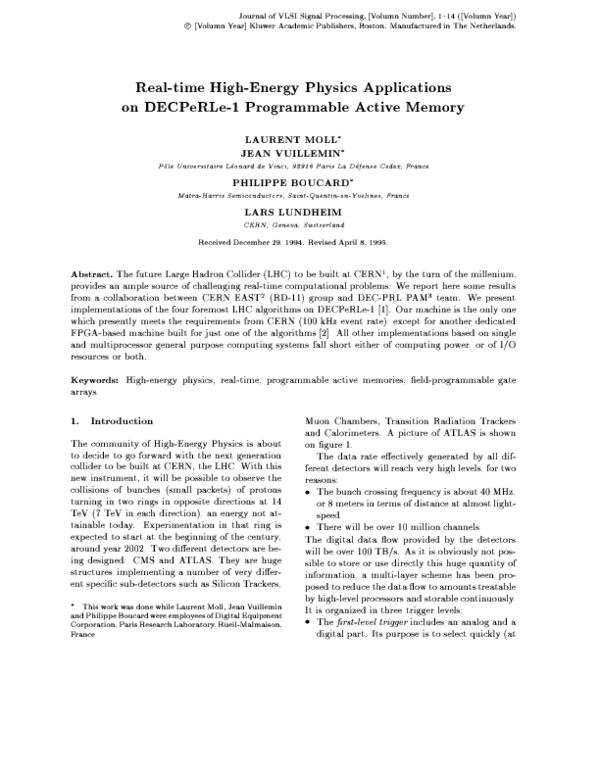

The future Large Hadron Collider (LHC) to be built at CERN 1 , by the turn of the millenium, provides an ample source of challenging real-time computational problems. We report here some results from a collaboration between CERN EAST 2 (RD-11) group and DEC-PRL PAM 3 team. We present implementations of the four foremost LHC algorithms on DECPeRLe-1 [1]. Our machine is the only one which presently meets the requirements from CERN (100 kHz event rate), except for another dedicated FPGA-based machine built for just one of the algorithms . All other implementations based on single and multiprocessor general purpose computing systems fall short either of computing power, or of I/O resources or both.
