Environmental Engineering is a branch of engineering focused on designing, implementing, and managing systems and technologies to protect and improve the environment. It encompasses the study of air, water, and soil quality, waste management, and sustainable practices to mitigate pollution and promote ecological health.
arrow_forwardView all topics
Five Misunderstandings about Case-Study Research
by Bent Flyvbjerg

2006, Qualitative Inquiry, vol. 12, no. 2, pp. 219-245

This article examines five common misunderstandings about case-study research: (a) theoretical knowledge is more valuable than practical knowledge; (b) one cannot generalize from a single case, therefore, the single-case study cannot... more
descriptionView Paperarrow_downwardDownload
Large Area Hydrologic Modeling and Assessment Part II: Model APPLICATION1
by Tharacad Ramanarayanan

1998, Jawra Journal of the American Water Resources Association

A conceptual, continuous time model called SWAT (Soil and Water Assessment Tool) was developed to assist water resource managers in assessing the impact of management on water supplies and nonpoint source pollution in watersheds and large... more
Figure 2. Components of the Hydrologic Balance Simulated Within a SWAT Subbasin.
Figure 4. Nitrogen Forms and Transformations Simulated with a SWAT Subbasin. Fertilization. Fertilizer applications can also be scheduled by the user or automatically applied by the model. The user-scheduled option requires the user to input the application date, total amount of N and P, fraction of organic and inorganic N and P, and the soil layer of application. The model adds the amount of fertilizer to the proper nutrient pool (organic and inorganic) and to the specified soil layer. The auto- matic fertilization option requires the user to input the plant nitrogen stress level (0-1) to trigger fertil- ization, the amount of NOs in the soil profile after fer- tilization, the soil layer of the application, the maximum amount of NO3 that can be applied in one year, and the minimum time between fertilizer appli- cations.
Figure 5. Pesticide Transformations Simulated Within a SWAT Subbasin.
descriptionView Paperarrow_downwardDownload
Updated high‐resolution grids of monthly climatic observations–the CRU TS3. 10 Dataset
by Tim Osborn
This paper describes the construction of an updated gridded climate dataset (referred to as CRU TS3.10) from monthly observations at meteorological stations across the world's land areas. Station anomalies (from 1961 to 1990 means) were... more
descriptionView Paperarrow_downwardDownload
Insights into the modeling of adsorption isotherm systems
by Araceli Sánchez López
Concern about environmental protection has increased over the years from a global viewpoint. To date, the prevalence of adsorption separation in the environmental chemistry remains an aesthetic attention and consideration abroad the... more
Lists of adsorption isotherms models. energy distribution, with most of its sites has an adsorption energy lower than the peak (maximum) or mean value [23]. Table 1 in homogeneous or heterogeneous systems due to its versatility [22]. Typically, a minimization procedure is adopted in solving the equations by maximizing the correlation coefficient between the experimental data points and theoretical model predictions with solver add-in function of the Microsoft excel [26]. In the limit, it approaches Freundlich isotherm model at high concentration (as the exponent # tends to zero) and is in accordance with the low concentration limit of the ideal Langmuir condition (as the 6 values are all close to one) [67].
Lists of error functions. Table 2 with relative pressure ranges from 0.05 to 0.30 corresponding to a monolayer coverage lying between 0.50 and 1.50. Its extinction model related to liquid-solid interface is exhibited as: As a note, the empirical isotherm is reasonable fit to Frenkel—Halsey-Hill (FHH) or MacMillan—-Teller (MET) isotherms for relative pressures higher than 0.8 and approximately Brunauer-Emmett-Teller (BET) isotherm for relative pressures lower than 0.35.
Previous researches of the linear and nonlinear isotherm studies. Table 3
descriptionView Paperarrow_downwardDownload
Microbial Fuel Cells: Methodology and Technology†
by Bruce Logan

2006, Environ. Sci. …

Microbial fuel cell (MFC) research is a rapidly evolving field that lacks established terminology and methods for the analysis of system performance. This makes it difficult for researchers to compare devices on an equivalent basis. The... more
FIGURE 1. Operating principles of a MFC (not to scale). A bacterium in the anode compartment transfers electrons obtained from an electron donor (glucose) to the anode electrode. This occurs either through direct contact, nanowires, or mobile electron shuttles (small spheres represent the final membrane associated shuttle). During electron production protons are also produced in excess. These protons migrate through the cation exchange membrane (CEM) into the cathode chamber. The electrons flow from the anode through an external resistance (or load) to the cathode where they react with the final electron acceptor (oxygen) and protons (26).
FIGURE 2. Types of MFCs used in studies: (A) easily constructed system containing a salt bridge (shown by arrow) (27); (B) four batch-type MFCs where the chambers are separated by the membrane (without a tube) and held together by bolts (7); (C) same as B but with a continuous flow-through anode (granular graphite matrix) and close anode—cathode placement (75); (D) photoheterotrophic type MFC (76); (E) single-chamber, air-cathode system in a simple “tube” arrangement (30); (F) two-chamber H-type system showing anode and cathode chambers equipped for gas sparging (23). resistance or power densities derived from polarization curves taken using different methods, has made it difficult to interpret and compare resu ts among these systems (26). The variation in reported data has created a need to clarify methods of data collection and reporting. We have individu- ally received many requests construction of MFCs and for rom researchers for details on names of providers of materials and equipment, indicating t' here is a need in the literature for a paper that provides a more comprehensive source of this information. In this paper, we therefore review existing H-shape systems are acceptable for basic parameter research, such as examining power production using new materials, or types of microbial communities that arise during the degradation of specific compounds, but they typically produce low power densities. The amount of power that is generated in these systems is affected by the surface area of the cathode relative to that of the anode (28) and the surface of the membrane (29). The power density (P) produced by these systems is typically limited by high internal resistance

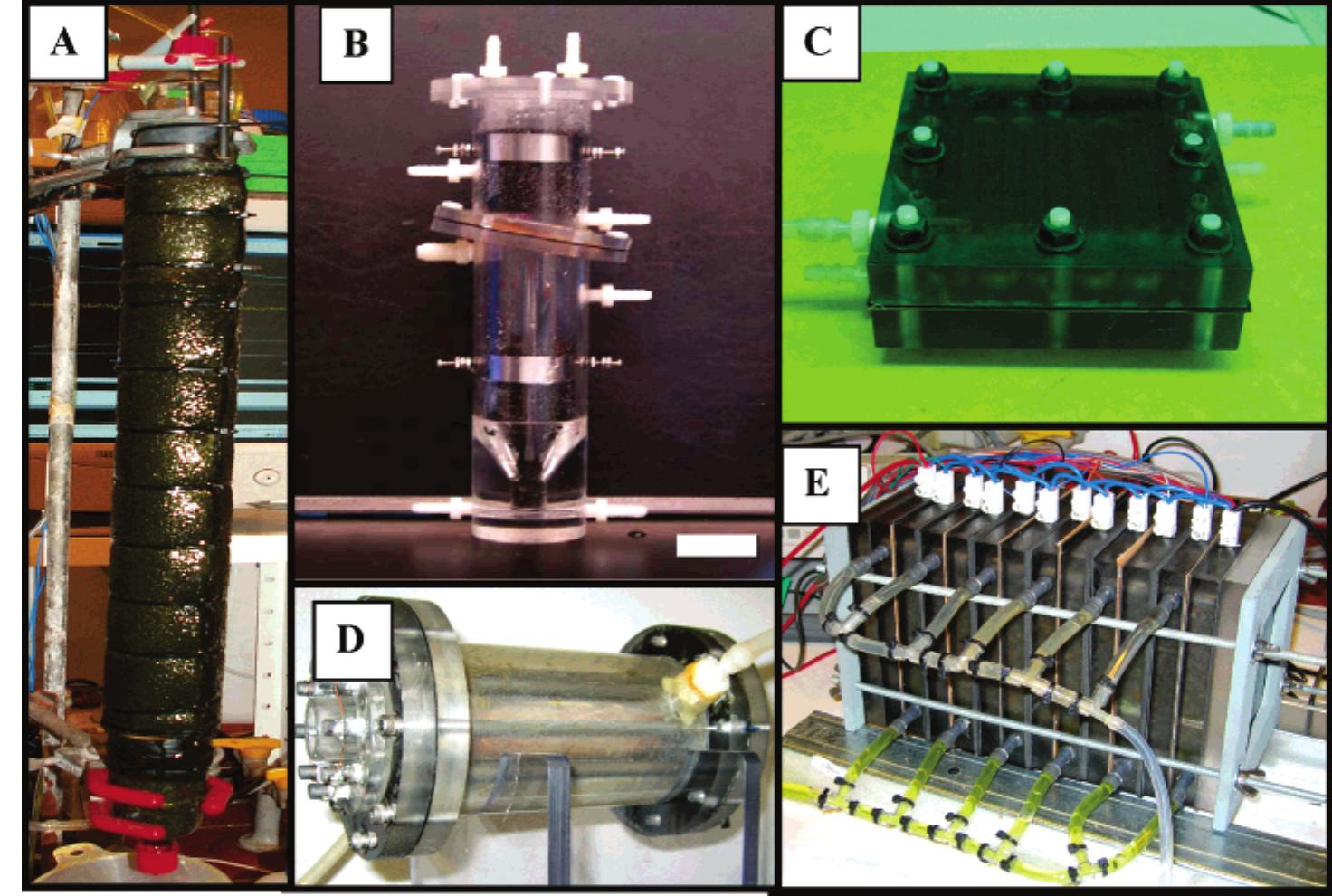

FIGURE 3. MFCs used for continuous operation: (A) upflow, tubular type MFC with inner graphite bed anode and outer cathode (35); (B) upflow, tubular type MFC with anode below and cathode above, the membrane is inclinated (36); (C) flat plate design where a channel is cut in the blocks so that liquid can flow in a serpentine pattern across the electrode (17); (D) single-chamber system with an inner concentric air cathode surrounded by a chamber containing graphite rods as anode (34); (E) stacked MFC, in which 6 separate MFCs are joined in one reactor block (25).
FIGURE 4. Electrochemical analysis of microbial fuel cells. (A) Anodic (blue solid line) and cathodic (red dashed line) voltage profiles over time when applying the current interrupt method for determination of the ohmic resistance of an MFC. Sections 2 and 3 indicate the voltage differences related to the ohmic resistance; sections 1 and 4 indicate voltage losses caused by the activation overpotentials. (B) Cyclic voltammogram (solid line) of an elec- trochemically active mixed microbial community. The dashed lines connect the oxidation and reduction peaks of redox active compounds (6).
4Calculated from Gibbs free energy data tabulated in ref 67. % Note that an MFC with an acetate oxidizing anode (HCO;- = 5 mM, CH;COO- = 5 mM, pH = 7) and an oxygen reducing cathode (pO2 = 0.2, pH = 7) has a cell emf of 0.805 — 0.296= 1.101 V. TABLE 1. Standard Potentials Ey and Theoretical Potentials for Typical Conditions in MFCs Eyre (Enrc Was Calculated Using Eq 5 and Half Cell Values from Ref 57; All Potentials Are Shown against NHE)
descriptionView Paperarrow_downwardDownload
Review on thermal energy storage with phase change: materials, heat transfer analysis and applications
by Muhammad Nadjib

2003, Applied Thermal Engineering

Thermal energy storage in general, and phase change materials (PCMs) in particular, have been a main topic in research for the last 20 years, but although the information is quantitatively enormous, it is also spread widely in the... more
Fig. 1. Areas of research in thermal storage systems [1]. equipment or in installations with reduced prices for electrical energy consumed during off-peak hours. Nowadays, security of energy supply is often achieved with extra equipment. The use of phase change materials (PCMs) could either avoid or reduce this extra equipment. As it will be seen later in this paper, thermal inertia and thermal protection is the area where the PCMs have achieved a higher penetration in the market. Low mama wrens an oo eaviraw AP ao¢isdéan dan Geaw «oth "TEO aoadnnw whaon nhawewsa ewotacsale Tha
Fig. 2. Classification of energy storage materials [1].
Fig. 3. Enthalpy variation with temperature.
Inorganic substances with potential use as PCM
Table 1 (continued)
Table 1 (continued) n.a.: not available. B. Zalba et al. | Applied Thermal Engineering 23 (2003) 251-283 a a Pa as As far as concerns the storage temperature or phase change, the heat transfer in accumulators can be improved choosing the PCM in such a way that its phase change temperature optimises the thermal gradient with respect to the substance with which the heat is being exchanged (Farid [46], Hassan [64], Strub [65]). For example, with paraffins and alkanes it is possible to vary the number of carbon atoms or form different molecular alloys which allows a practically continuous varia- tion of the phase change temperature within certain ranges.
Non-eutectic mixtures of inorganic substances with potential use as PCM % in weight; n.a.: not available.

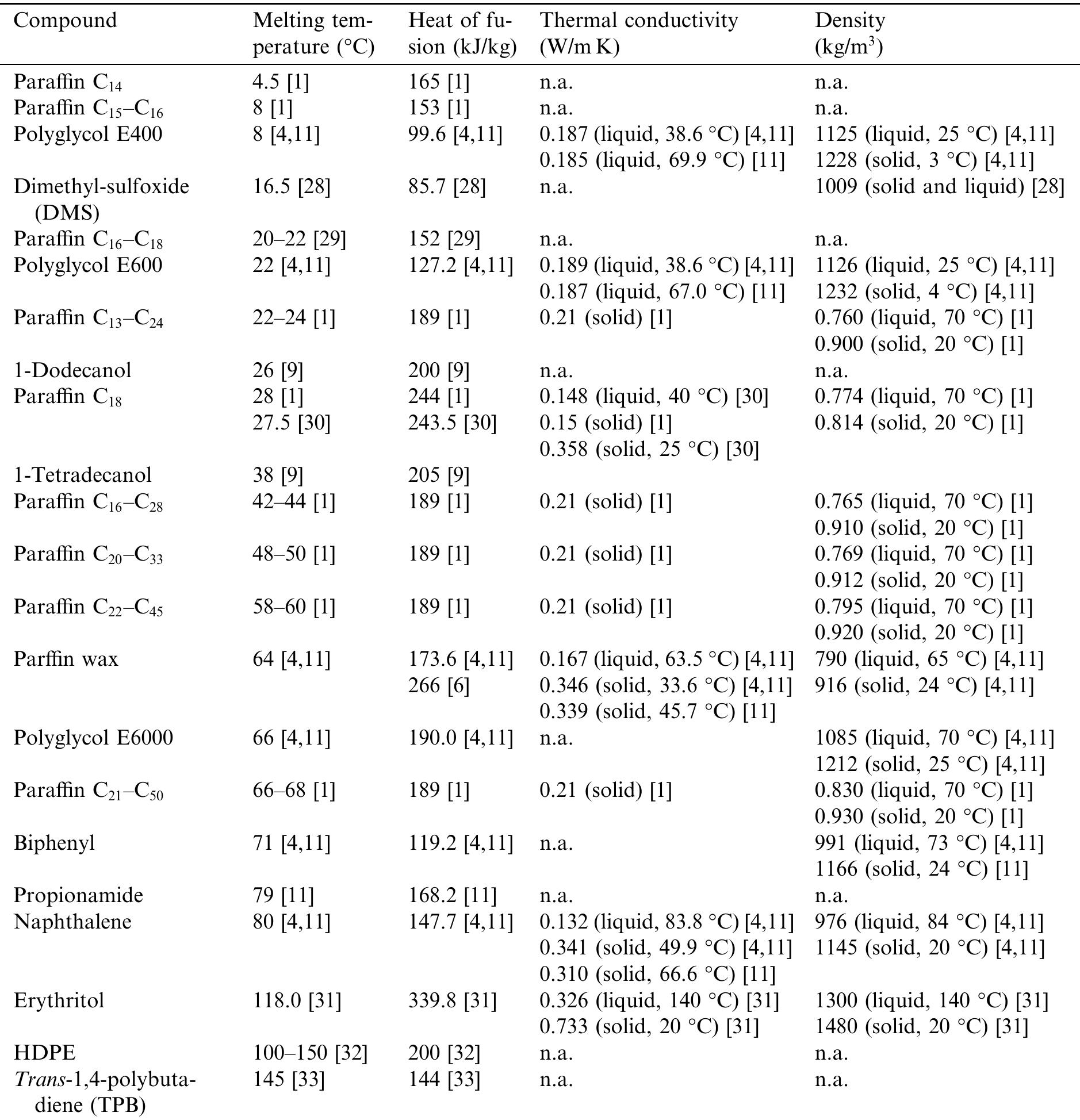

Organic substances with potential use as PCM
Organic eutectics with potential use as PCM Table 5 on observation over experimental set-ups [78,79]. Porisini [80] tested the corrosion of four com- mercially available salt hydrates used as PCMs in 1988. Recently, Cabeza et al. [81-84] studied corrosion resistance of five common metals (aluminium, brass, copper, steel and stainless steel) in contact with molten salt hydrates (zinc nitrate hexahydrate, sodium hydrogen phosphate do- decahydrate, calcium chloride hexahydrate, sodium carbonate, potassium hydrogen carbonate, potassium chloride, water, sodium acetate trihydrate, and sodium thiosulphate pentahydrate) in an immersion corrosion test. ot @ a ee a | ay i rr ee o a, a, er, ee ey
Fatty acids with potential use as PCM % in weight; n.a.: not available.
Commercial PCMs available in the market n.a.: not available.

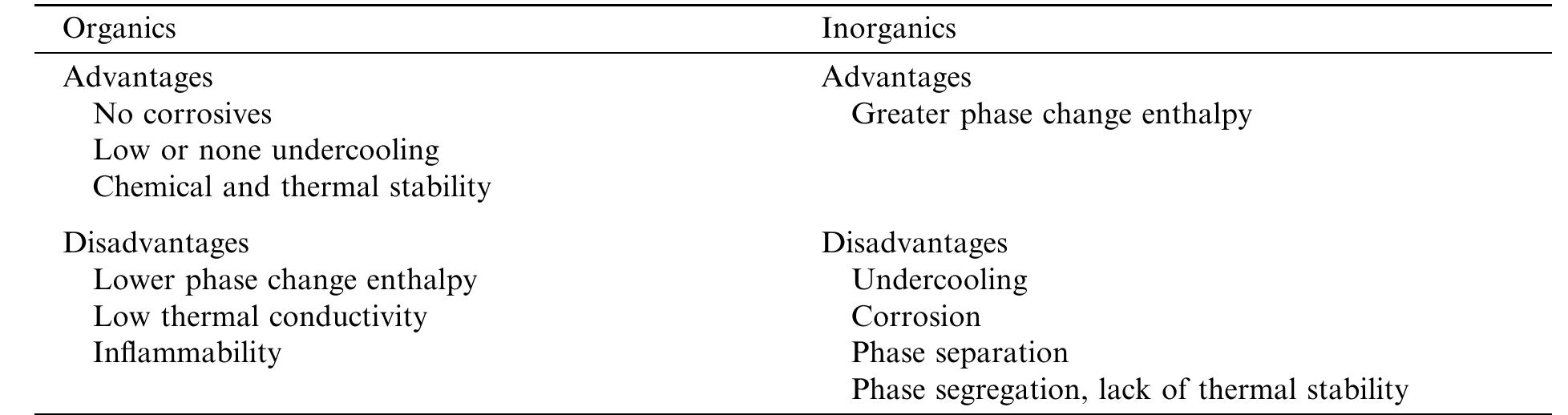

Comparison of organic and inorganic materials for heat storage Table 8 Important characteristics of energy storage materials
3. Heat transfer
B. Zalba et al. | Applied Thermal Engineering 23 (2003) 251-283 In the past, the earliest works basically concentrated on analysing pure substances, often water (for ice stores). Studies that can be cited include London [98], Goodman [162], Lazaridis [100] and Saitoh [163]. In subsequent years, and even quite recently and due to the implementation on a commercial and industrial scale of the so-called ice storage systems, abundant information re- lating to water as a storage substance has also appeared i in the literature. we ite: Pn a aa Pa ee qe
descriptionView Paperarrow_downwardDownload
Evaluating the use of “goodness-of-fit” Measures in hydrologic and hydroclimatic model validation
by Greg McCabe

1999, Water Resources Research

Correlation and correlation-based measures (e.g., the coefficient of determination) have been widely used to evaluate the "goodness-of-fit" of hydrologic and hydroclimatic models. These measures are oversensitive to extreme values... more
WHT EM VVELU GE SELULOsS LM MIC Gi LU Ue CHU Le PCeLivy of the evaluation. Note, however, that the coefficient of deter- mination is limited in that it standardizes for differences be- tween the observed and predicted means and variances since it only evaluates linear relationships between the variables. It can be easily demonstrated that if P, = (AO, + B) for any nonzero value of A and any value of B, then R? = 1.0. Thus R? is insensitive to additive and proportional differences be- tween the model simulations and observations [see Willmott, 1984]. Large values of R? can be obtained even when the model-simulated values differ considerably in magnitude (i.e., values of B that differ significantly from 0.0) and variability (i.e., values of A that differ significantly from 1.0). Clearly, in such cases, a model would exhibit serious flaws that should preclude the attribution of a “perfect” designation. These lim- itations in the coefficient of determination and other correla- tion-based measures are well documented [cf. Willmott, 1981; Moore, 1991; Kessler and Neas, 1994; Legates and Davis, 1997], although such measures still have been used recently to pro- vide, for example, an assessment of climate change detection [e.g., Santer et al., 1995; Hegerl et al., 1996; Santer et al., 1996] and hydrological and hydroclimatological applications (see McCuen and Snyder [1975] and Willmott [1984] for some ex- amples).
where j represents an arbitrary power (i.e., a positive integer). Note that the original index of agreement d developed by Willmott [1981] becomes d, using this notation.
where O’ is the baseline value of the time series against which the model is to be compared. It usually is a function of time and, in some applications, may be a function of other variables as well. Consequently, d{, is useful in that its interpretation is more conventional, as it more closely follows the interpretation Garrick et al. [1978, p. 376] further argued that the assump- tion of comparing the model to the observed mean was “un- necessarily primitive.” Better methods exist to define the base- line against which a model should be compared. For example, persistence or averages that vary by season or another time period (i.e., a climatology) may provide a more appropriate baseline for most hydrological or hydroclimatological studies than simply the average of the entire time series. Thus both E, and d, can be rewritten in a “baseline adjusted” form as
Figure 2. Scatterplots of the Thornthwaite, Jensen-Haise, van Bavel, and climatological (monthly mean) estimates versus the observed (coefficient adjusted pan evaporation) data pre- sented in Figure 1. An examination of Pearson’s correlation coefficient (r) or the coefficient of determination (R*) yields a misleading pic-
Figure 1. Time series of monthly potential evapotranspiration estimated by the Thornthwaite [1948], Jensen and Haise [1963], and van Bavel [1966] methods compared with observations (measured pan evaporation multiplied by a pan coefficient of 0.76). Data were taken from January 1981 through December 1983 for southern Louisiana (data from McCabe and Muller [1987]).
Figure 4. Scatterplot of the observed and modeled monthly runoff (precipitation runoff modeling system) data presented in Figure 3.
Figure 3. Observed and modeled monthly runoff (precipitation runoff modeling system) for the East River Basin in southwestern Colorado from October 1972 through September 1989 (data from McCabe and Hay [1995]).
Table 1. Means and Standard Deviations of Observed and Simulated Monthly Potentia Evapotranspiration for Baton Rouge, Louisiana, for the Period From January 1981 Through December 1983, and Statistics Comparing the Observed and Simulated Time Series
Table 2. Means and Standard Deviations of Observed and Simulated Monthly Runoff in the East River Basin in Southwestern Colorado for the Period October 1972 Through September 1989, and Statistics Comparing the Observed and Simulated Time Series
descriptionView Paperarrow_downwardDownload
Wind power in power systems
by wanki emmanuel

2005

Figure 8.1 Examples of: a) frequency variations in the system during one day; b) frequency distribution in the system during one week (Source: Hirvonen, 2000).
Figure 8.2 Example of actual load in the system during 3 hours compared to forecasted load. (Source Holttinen, 2003)
Figure 8.3 Activation of power reserves and frequency of power system as a function of time, for a situation where a large power plant is disconnected from the power system. (Source: Hirvonen, 2000).
For power systems, the relevant information on wind power production is the probability distribution, the range and seasonal or diurnal patterns of the production, as well as the magnitude and the frequency of the variations (ramp rates). Figure 8.4 Example of large-scale wind power production: Denmark (both Zeeland and Jutland) in January 2000. Average wind power production in January was 687 MW and in 2000 all year 485 MW (~24 % of the installed capacity). (Source: Holttinen, 2003)
Figure 8.5 Increased resources and geographical spreading lead to a flattened duration curve of wind power production. Example of year 2000 hourly data, where wind power production from turbines throughout the four Nordic countries, Denmark, Finland, Norway and Sweden, is compared with one of the wind farms and one of the areas (Denmark, West). (Source: Holttinen, 2003) The duration curve of dispersed wind power production in figure 8.5 illustrates that: the production from one wind turbine is zero for 10-20 % of the time, and at nominal capacity 1-5 % of the time, whereas the production from large-scale wind power production is in this example rarely below 5 % or above 75 % of capacity.

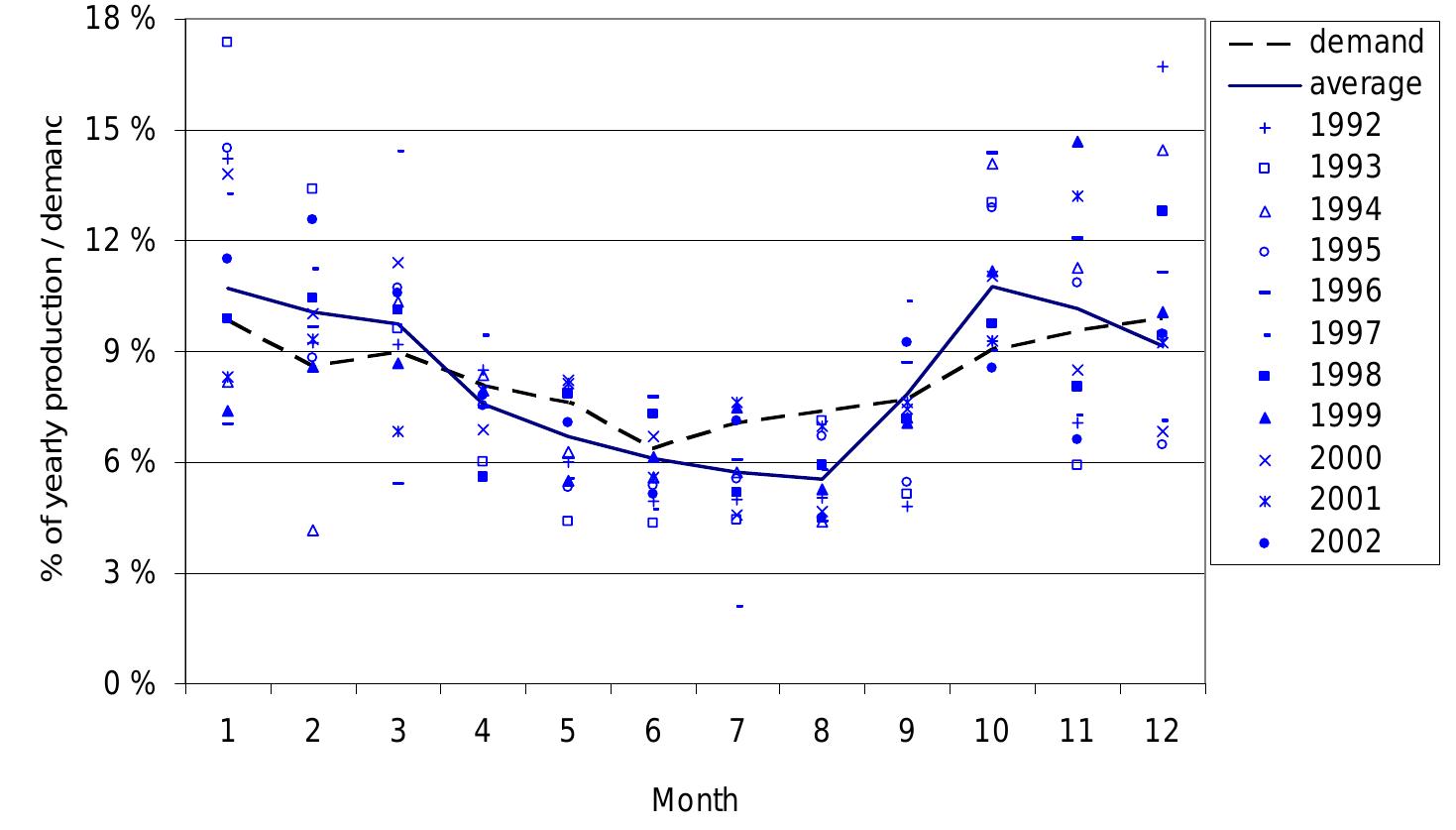

Figure 8.6 Seasonal variations of wind power production. Example from Finland for the years 1992— 2002. Average monthly production in 1992—2002 is shown (solid line) together with the electric consumption in 2002 (dotted line). (Source: Holttinen, 2003)
Wind is driven by weather fronts. It may also follow a daily pattern caused by the sun. Depending on what is prevalent in the region, there is either a strong or hardly any diumal pattern in the production. There are many sites where the wind often starts to blow in the morning and calms down in the evening (Hurley and Watson, 2002; Ensslin et al, 2000). Ir Northern Europe, this is most pronounced during the summer (see Figure 8.7). Diurnal variation can also be due to local phenomena. An example would be the mountain ranges ir California with morning and evening peaks, when wind blows from the desert to the see and in the opposite direction, respectively. Figure 8.7 Diurnal variations of wind power production are larger during the summer, example fror Denmark.
The larger the area, the longer the periods of time over which the smoothing effec extends. Figure 8.8 shows the decreasing correlation’ of the variations for different time scales (Ernst, 1999). The correlation is here calculated for the differences betwee consecutive production values (AP). For the time series of production values, the correlation does not decrease as rapidly as shown here. Within one wind farm, gust: (seconds) will not effect all wind turbines at exactly the same moment. However, the hourl} wind power production will follow approximately the same ups and downs. In a larger are covering several hundreds of square kilometres, the weather fronts causing high winds wil not pass simultaneously over the entire regions. However, high and low wind months wil coincide for the whole area. Figure 8.8 Variations will smooth out faster when the time scale is small. Correlation of variations for different time scales, example from Germany (Ernst, 1999).
Figure 8.9. Variation of wind power production from one hour to the next. Duration curve of variations, as a percentage of installed capacity, for Denmark (Jutland) and for the theoretical Nordic wind power production assuming equal production in each of the four countries, year 2000. (Source: Holttinen, 2003)
When studying the impact of wind power on power systems, we refer to an area that is larger than only one wind farm. According to the impact that is analysed, we have to look at the power system area that is relevant. For voltage management, only areas near wind power plants should be taken into account. Even though there should be enough reactive power reserve in the system during disturbances, the reserve should mainly be managed locally. For intra-hour variations, frequency control for load following, we should look at the area of the synchronously operated system. DC links connecting synchronously operated areas can also be automised to be used for primary power control®. However, their power reserve capacity is usually only allocated as emergency power supply. For the day-ahead hourly production, a relevant area would be the electricity market. The Nordic power market, for instance, includes countries that are situated in different synchronous systems. Large interconnected areas lead to substantial benefits, unless there are bottlenecks in transmission’. Figure 8.10 Power system impacts of wind power, causing integration costs. Some of the impacts can be beneficial for the system, and wind power can provide a value, not only costs (Source Holttinen, 2003).
Figure 8.11 Correlation of temperature to wind power production and load in a cold climate, example of Finland, geographically dispersed wind power. There were 48 hours (0.1 % of time) below —23 °C and 549 hours (1.6 % of time) below —14°C during the years 1999-2002. (Source: Holttinen, 2003) Nevertheless, variable sources can save thermal capacity. Since no generating plant is completely reliable, there is always a finite risk of not having enough capacity available. Variable sources may be available at the critical moment when demand is high and many other units fail. Fuel source diversity can also reduce risk.
descriptionView Paperarrow_downwardDownload
Multifractal detrended fluctuation analysis of sunspot time series
by M Movahed

2006, Journal of Statistical Mechanics-theory and Experiment

We use multifractal detrended fluctuation analysis (MF-DFA), to See query 1 study sunspot number fluctuations. The result of the MF-DFA shows that there are three crossover timescales in the fluctuation function. We discuss how the... more
descriptionView Paperarrow_downwardDownload
Macropores and water flow in soils
by Peter Germann

1982, Water Resources Research

descriptionView Paperarrow_downwardDownload
Fully coupled “online” chemistry within the WRF model
by Georg Grell

2005, Atmospheric …

descriptionView Paperarrow_downwardDownload
Techniques of trend analysis for monthly water quality data
by arun bharathi

1982, Water resources research

The user has requested enhancement of the downloaded file.
descriptionView Paperarrow_downwardDownload
Lignin valorization: improving lignin processing in the biorefinery
by Richard Chandra

2014, Science (New York, N.Y.)

Research and development activities directed toward commercial production of cellulosic ethanol have created the opportunity to dramatically increase the transformation of lignin to value-added products. Here, we highlight recent advances... more
descriptionView Paperarrow_downwardDownload
Empirical equations for some soil hydraulic properties
by Roger B Clapp

1978, Water Resources Research

with a power function relating soil moisture and hydraulic conductivitymis used to derive a formula for the wetting front suction required by the Green-Ampt equation. Representative parameters for the moisture charac- teristic, the... more
descriptionView Paperarrow_downwardDownload
Physiographically sensitive mapping of climatological temperature and precipitation across the conterminous United States
by Michael Halbleib

2008, International Journal of Climatology

Spatial climate data sets of 1971-2000 mean monthly precipitation and minimum and maximum temperature were developed for the conterminous United States. These 30-arcsec (∼800-m) grids are the official spatial climate data sets of the U.S.... more
Table III. Number of stations used in the mapping process, and native averaging interval. See text for definitions of acronyms.
Figure 1. Locations of (a) surface precipitation stations and (b) surface temperature stations used in the interpolation.
Figure 2. Western U.S. coastal proximity grids for (a) temperature (TW) and (b) precipitation (PW). Coastal proximity describes the optimal path length from the coastline in kilometres, accounting for terrain blockage. Trajectory describes the straight-line path length from the coastline in kilometres, modified by terrain blockage. Topographic facet guidance is provided to PRISM through a series of topographic facet grids (Table ID). The current method for delineating topographic facets is described in Gibson et al. (1997) and Daly et al. (2002). Facet grids are constructed for six DEM smoothing levels, or scales (Daly et al., 1994, 2002). The smoothed DEM for each level is prepared by applying the Gaussian filter (Barnes, 1964) to the precipitation DEM. The horizontal filtering cut-off distance (i.e. how far out the A simple trajectory model was designed to assess rela- tive moisture availability to guide precipitation mapping (abbreviated PW; Table I). The trajectory model is simi- lar to the coastal advection model in that it accounts for changes in moistu re content due to path length and ter- rain effects. It differs in that the air parcel trajectories are straight line and invariant throughout the simulation, as might be the case within large-scale synoptic circula- tions that produce significant precipitation. The premise here is that the mean potential for precipitation expe- rienced at a site is the result of (1) loss of moisture through rainout, which accumulates as the path length over land increases, and (2) enhancement and suppres- sion of precipitation caused by adiabatic cooling and warming during gence is not consi bearing air flow al southwesterly, wit flow over terrain obstacles. Conver- dered in this simple model. Moisture- ong the West Coast is most commonly h some variation around that direction. Therefore, the trajectory model was run for three flow directions: 230, 24 aged as 0.2(230) 4 O, and 250° true, and the results aver- + 0.6(240) + 0.2(250). Algorithms for, and operation of, the trajectory model are given in Daly
Figure 3. Topographic facet grid for the conterminous United States at a filtering distance of 36 km. A simple method was developed to spatially distribute the approximate height of the top of a climatologically persistent inversion layer, should it exist, for use in Our analyses of rawinsonde data from several cities in the United States with persistent climatological inver- sions, mostly during winter, indicated that the inver- sion top typically occurred at roughly 200-300 m above ground level. Therefore, 250 m was added to the base elevation at each grid cell to obtain the potential inver- sion height above sea level. While this is only a rough approximation of the inversion height, it has been effective for modelling purposes (Table II). The poten- tial inversion height grid for the contiguous United States is illustrated in Figure 4. Valleys, plains, and other low-lying areas tend to fall within the bound- ary layer, while local ridge tops and other elevated
Figure 4. Potential inversion height grid for the conterminous United States, illustrated as the difference between the inversion height and the 800-m DEM elevation. Terrain rising above the inversion height (in layer 2) is shaded, and terrain falling below this height (in layer 1) is unshaded.
Figure 5. Topographic index grid for the conterminous United States. The scale indicates metres above the local base terrain. PHYSIOGRAPHICALLY SENSITIVE MAPPING OF CLIMATOLOGICAL TEMPERATURE AND PRECIPITATION
Figure 6. Effective terrain grid for the conterminous United States. Black areas denote terrain features that are expected to produce the strongest terrain-induced (3D) precipitation patterns, and grey areas denote features expected to have some influence on precipitation patterns (2D/3D transition). Unshaded grid cells as far as 100 km away from the shaded areas may also be considered 3D or 2D/3D transition areas. See text and Appendix C for discussion.
Figure 7. Conterminous U.S. maps of PRISM 1971-2000 mean annual precipitation, January minimum temperature, and July maximum temperature. This figure is available in colour online at www.interscience.wiley.com/ijoc
Figure 8. PRISM mean absolute cross-validation errors (MAE) for 1971—2000 mean: (a) annual precipitation; (b) January minimum temperature; and (c) July maximum temperature. Station density was too high to be shown clearly, requiring that 80% of the stations be randomly omitted from the plots.
Figure 9. Seventy percent prediction intervals (PI70) for: (a) mean annual precipitation; (b) January mean minimum temperature; and (c) July mean maximum temperature. PI70 for precipitation is expressed as a percentage of the pixel’s value.
Figure 10. (a) Scatterplot of the relationship between C-V MAE and PI70 for mean annual precipitation (given in percentage of the estimated grid cell value) when averaged over 300 x 300-km blocks in the western United States; and (b) R? of the linear relationships between CV-MAE and PI70 for mean annual precipitation, January minimum temperature, and July maximum temperature at block sizes ranging from 100 to 500 km in the western United States. This figure is available in colour online at www.interscience.wiley.com/ijoc
Figure 11. Daymet/PRISM and WorldClim/PRISM ratio maps (expressed as percentage) of mean annual precipitation for the conterminous United States. This figure is available in colour online at www.interscience.wiley.com/ijoc Basin RO + ET values in Figure 14 (upper left panel) show the sharp decline in moisture between windward and leeward basins. A comparison of basin-mean precip- itation for the three data sets is presented in the remaining three panels of Figure 14, and a profile of the com- parisons is shown in Figure 15. Daymet simulated the windward basins well, but at the expense of the leeward side, which was substantially overestimated. WorldClim was quite low on the windward side, and somewhat high on the leeward side. PRISM simulated both the windward
Figure 12. Daymet — PRISM and WorldClim — PRISM difference maps of mean January minimum temperature for the conterminous United States. This figure is available in colour online at www. interscience.wiley.com/ijoc
Figure 13. Daymet — PRISM and WorldClim — PRISM difference maps of mean July maximum temperature for the conterminous United States. This figure is available in colour online at www.interscience.wiley.com/ijoc
Figure 14. Upper left panel: annual RO + ET (runoff + evapotranspiration), a water balance approximation of total precipitation, for selected basins in Washington’s Olympic Mountains, colour-coded following the precipitation legend. ET was roughly estimated at 500 mm/yr for all basins. Remaining panels: WorldClim, Daymet, and PRISM mean annual precipitation grids, with basin overlays, also colour-coded following the precipitation legend. To agree with the basin water balance estimates, the mean grid colour within a basin should match that shown in the upper left panel. Stations used in the PRISM analysis are shown as black dots. This figure is available in colour online at www. interscience.wiley.com/ijoc
Figure 15. Estimated mean annual precipitation from WorldClim, Daymet, PRISM, and RO + ET (runoff + evapotranspiration), a water balance approximation of total precipitation, for river basins on the windward and leeward slopes of the Olympic Mountains. ET is assumed to be 500 mm for all watersheds. Runoff periods of record are 1971-2000, except for 1975-2000 on the Queets and 1995-2000 on the Quilcene. This figure is available in colour online at www.interscience.wiley.com/ijoc
Figure 16. PRISM diagnostic grids associated with mean annual precipitation for the Olympic Mountains, Washington: (a) topographic facet grid at a filtering distance of 36 km; (b) PW coastal proximity, which describes a straight line, approximately southwesterly path length from the coastline in km, modified by terrain blockage; (c) vertical precipitation gradient, expressed as a percentage of the pixel’s value per kilometre: and (d) 70% prediction interval (PI70), expressed as a percent of the pixel’s value. in the protected Gunnison Valley and adjacent valleys (Figure 17). PRISM diagnostic grids show an estimated SRRRE Aone tewourn mes Muwemeemn Figen wns emenreated vinta TSR NT So OR OOS cx EN STE NST SPITE ONT ENTREES) RE AUR ST NEZE NNR in Sem ROSETTE TRS IS ge oe fe ENR Cold biases of the Daymet and WorldClim data sets in western Colorado are illustrated in Figure 19. Here, 369 stations were grouped into four topographic index
Figure 17. Comparison of PRISM, Daymet, and WorldClim January mean minimum temperature grids for the Gunnison Valley region. CO. Stations used in the PRISM interpolation are shown as red dots in the PRISM panel. This figure is available in colour online a www.interscience.wiley.com/ijoc
Figure 19. Biases between grid-cell estimates and observed 1971-2000 mean January minimum temperatures (estimate — observation), grouped by topographic index, for 369 stations in western Colorado. Stations with high topographic indexes are on locally elevated terrain, and those with low indexes are in local valley bottoms. Stations with moderate indexes (300—500) are neither in local valley bottoms nor on locally elevated terrain. Figure 18. PRISM diagnostic grids associated with January mean minimum temperature interpolation for the Gunnison Valley region, CO: (a) inversion layer; (b) topographic index; (c) vertical temperature gradient; and (d) 70% prediction interval (PI70).
Figure 20. Comparison of PRISM, Daymet, and WorldClim July mean maximum temperature grids for the central coast, CA. This figure is available in colour online at www.interscience.wiley.com/ijoc
Figure 21. PRISM diagnostic grids associated with July mean maximum temperature interpolation for the central coast, CA: (a) summer inversion layer, given as layer | (within inversion) or layer 2 (above inversion); (b) western temperature (TW) coastal proximity, expressed as the optimal! path length from the coastline in kilometres, accounting for terrain blockage; (c) vertical temperature gradient; and (d) 70% prediction interval! (PI70).
Figure 22. Bias between grid-cell estimates and observed 1971—2000 mean July maximum temperatures (estimate — observation), grouped by coastal proximity (Figure 2(a)), for 1201 stations in California. Stations with low coastal proximity indexes experience a generally strong marine temperature influence during summer, and those with high indexes experience much less of this influence (see Figures 2(a) and 21(b) for spatial context).
Figure Al. Mean absolute error of the adjusted mean July maximum temperature from the known 30-year mean versus number of anchor stations used to compute the adjusted mean. A total of 84 stations were tested using short-term periods of record of 5, 11, and 21 years. This figure is available in colour online at www.interscience.wiley.com/ijoc
Table I. Methods for preparation of PRISM input grids, part 1. the basis for most of the other physiographic input grids to PRISM (Section 4). The DEM used in this study was derived from the 3-arcsec (~80-m) National Elevation Database (NED) (NED; http://gisdata.usgs.gov/NED/). The NED elevation data was found to be superior to other DEMs for the conterminous United States, such as GTOPO30, Digital Terrain Elevation Database (DTED), and Space Shuttle Radar Topography Mission (SRTM), for this application. The GTOPO30 and DTED DEMs had noticeable elevation breaks, or ‘seams’ along some of the original U.S.Geological Survey (USGS) quad boundaries. The SRTM DEM had numerous grid cells with missing data in areas of steep terrain, and possessed significant ground clutter associated with low microwave signal-to-noise ratios. This 30-arcsec (~800-m) DEM was used for interpolat- ing maximum and minimum temperature. An additional filtering step was performed to obtain a DEM suitable for precipitation interpolation. The Gaussian filter was applied to the 30-arcsec (~800-m) DEM to filter out ter- rain features up to 3.75 arcmin (~7 km) in extent, while retaining the 30-arcsec (~800-m) grid resolution. The direct effects of elevation on precipitation appear to be most important at scales of 5-10 km or greater, owing to a number of mechanisms, including the advective nature of moisture-bearing airflow, the viscosity of the atmo- sphere, delays between initial uplift and subsequent rain- out, and the movement of air around terrain obstacles (Daley, 1991; Daly et al., 1994; Funk and Michaelsen, 2004; Sharples et al., 2005). In this paper, the two DEMs are hereafter referred to as the temperature and precipi- tation DEMs (Table II).
Table II. Methods for preparation of PRISM input grids, part 2.
able IV. PRISM algorithms and associated physiographic climate forcing factors, inputs to the algorithms, and references on their formulation and use. Methods used to prepare the gridded model inputs are summarized in Tables I and 2.
Table V. Vertical gradients in temperature and precipitation, summarized by effective terrain height (precipitation) and layer (temperature).
Table VI. PRISM cross-validation and PI70 statistics for precipitation and minimum and maximum temperature for the western, central, and eastern regions. MAE is the mean absolute (unsigned) difference between the prediction and observation during single-deletion jackknife cross-validation, and PI70 is the mean 70% prediction interval of the PRISM climate-elevation regression function.
descriptionView Paperarrow_downwardDownload
Photocatalytic degradation pathway of methylene blue in water
by Chantal Guillard

2001, Applied Catalysis B: Environmental

The TiO 2 /UV photocatalytic degradation of methylene blue (MB) has been investigated in aqueous heterogeneous suspensions. In addition to a prompt removal of the color, TiO 2 /UV-based photocatalysis was simultaneously able to oxidize... more
descriptionView Paperarrow_downwardDownload
Chemical Treatments of Natural Fiber for Use in Natural Fiber-Reinforced Composites: A Review
by Lope Tabil Jr.

2007, Journal of Polymers and The Environment

Studies on the use of natural fibers as replacement to man-made fiber in fiber-reinforced composites have increased and opened up further industrial possibilities. Natural fibers have the advantages of low density, low cost, and... more
Maleated coupling agents are widely used to strength- en composites containing fillers and fiber reinforce- ments [51-54]. The difference with other chemical treatments is that maleic anhydride is not only used to modify fiber surface but also the PP matrix to achieve better interfacial bonding and mechanical properties in composites [55-57]. The PP chain permits maleic anhydride to be cohesive and produce maleic anhy- dride grafted polypropylene (MAPP). Then the treat- ment of cellulose fibers with hot MAPP copolymers provides covalent bonds across the interface (Fig. 1). The mechanism of reaction of maleic anhydride with PP and fiber can be explained as the activation of the
Most permanganate treatments are conducted by using potassium permanganate (KMnO,) solution (in acetone) in different concentrations with soaking duration from 1 to 3 min after alkaline pre-treatment [10, 23, 48, 49, 54]. Paul et al. [10] dipped alkaline- treated sisal fibers in permanganate solution at con- centrations of 0.033, 0.0625 and 0.125% in acetone for 1 min. As a result of permanganate treatment, the hydrophilic tendency of the fibers was reduced, and thus, the water absorption of fiber-reinforced composite decreased. The hydrophilic tendency of fiber decreased as the KMnO, concentrations increased. But at higher KMnO, concentrations of 1%, degradation of cellulosic Mohanty et al. [59] used MAPP as coupling agent for the surface modification of jute fibers. It has been found that a 30% fiber loading with 0.5% MAPP concentration in toluene and 5 min impregnation time with 6 mm average fiber lengths gave the best results. A 72.3% increase in flexural strength was observed with the treated composites. In addition to PP matrix, Mishra et al. [60] reported that maleic anhydride treatment reduced the water absorption to a great extent in banana, hemp and sisal fiber-reinforced novolac composites. Mechanical properties like Young’s modulus, flexural modulus, hardness and impact strength of plant fiber-reinforced composites increased after maleic anhydride treatment.
Fig. 2 The reaction pathway for the preparation of urethane derivative of cardanol [23]
Sodium chlorite (NaClO,) usually is used in bleaching fibers; however, it could delignify ligno- cellulosics. Studies have been conducted wherein it was used in fiber surface treatment for composites. Mishra et al. [65] dipped untreated sisal fiber, for use in sisal-PS biocomposites, in sodium _ chlorite Joseph and Thomas [23] studied the chemical treatment of cardanol derivative of toluene diisocya-
composition may differ with the growing condition and test methods even for the same kind of fiber. Cellulose is a semicrystalline polysaccharide made up of pD- glucopyranose units linked together by f-(1-4)-gluco- sidic bonds [19]. And the large amount of hydroxyl group in cellulose gives natural fiber hydrophilic properties when used to reinforce hydrophobic matri- ces; the result is a very poor interface and poor resistance to moisture absorption [20]. Hemicellulose is strongly bound to cellulose fibrils presumably by hydrogen bonds. MHemicellulosic polymers are branched, fully amorphous and have a significantly lower molecular weight than cellulose. Because of its open structure containing many hydroxyl and acetyl groups, hemicellulose is partly soluble in water and hygroscopic [16]. Lignins are amorphous, highly com- plex, mainly aromatic, polymers of phenylpropane units [19] but have the least water sorption of the natural fiber components [16]. Rananca tha law: tnftartacial nranartiac hoatrnan Ghar optimize the interface of fibers. Chemicals may acti- vate hydroxyl groups or introduce new moieties that can effectively interlock with the matrix. The devel- opment of a definitive theory for the mechanism of bonding by chemicals in composites is a complex problem. Generally, chemical coupling agents are molecules possessing two functions. The first function is to react with hydroxyl groups of cellulose and the second is to react with functional groups of the matrix. Bledzki and Gassan [9] outlined several mechanisms of coupling in materials, namely: (a) elimination of weak boundary layers; (b) production of a tough and flexible layer; (c) development of a highly crosslinked inter- phase region with a modulus intermediate between that of substrate and of the polymer; (d) improvement of the wetting between polymer and substrate; (e) formation of covalent bonds with both materials; and (f) alteration of acidity of substrate surface. Chemical modifications of natural fibers aimed at improving the adhesion with a polymer matrix were investigated by a number of researchers [4, 21-24]. However, different chemicals were used and very limited papers [9, 18] took a partial review on the Because the low interfacial properties between fiber and polymer matrix often reduce their potential as reinforcing agents due to the hydrophilic nature of natural fibers, chemical modifications are considered to
descriptionView Paperarrow_downwardDownload
Response of mean annual evapotranspiration to vegetation changes at catchment scale
by Glen Walker

2001, Water Resources Research

It is now well established that forested catchments have higher evapotranspiration than grassed catchments. Thus land use management and rehabilitation strategies will have an impact on catchment water balance and hence water yield and... more
descriptionView Paperarrow_downwardDownload
Linking climate change modelling to impacts studies: recent advances in downscaling techniques for hydrological modelling
by Claudia Tebaldi

2007, International Journal of Climatology

There is now a large published literature on the strengths and weaknesses of downscaling methods for different climatic variables, in different regions and seasons. However, little attention is given to the choice of downscaling method... more
Figure 2. Map showing re-gridded RCM cells on the CRU 0.5° by 0.5° grid for the UK. The two regions used in this study are shown in grey: North West England (dark) and South East England (light). Figure 1. Flow diagram showing steps in the methodology used to produce probabilistic scenarios of climate change impacts for the River Eden. This figure is available in colour online at www.interscience.wiley.com/ijoc
Figure 3. Percentage seasonal change in precipitation projected under the 2070-2100 SRES A2 emissions scenario from the control period, 1961-1990, for two UK regions: North West England (black) and South East England (red). Notations for seasons are winter (DJF, December to February), spring (MAM, March to May), summer (JJA, June to August) and autumn (SON, September to November). The projection from the IPCC AR4 suite of 14 GCMs for all UK is shown in green for comparison. sensible results, being designed to handle an arbitrary number of data points, one caveat of the Bayesian approach is that independence is assumed between ensemble members. This may be an oversimplification, as many climate models share internal numerical and parameterization schemes. Here in particular, as some RCMs are driven by lateral boundary schemes from the same GCM, this assumption may be even less defensible and generate overly confident estimates of the uncertainty in the changes. However, results for two UK regions from the set of RCMs are comparable to the results for the entire UK from the set of IPCC-AR4 GCMs (Figures 3 and 4), suggesting that these RCMs are in fact representative of the IPCC-AR4 results. There is noticeable agreement in the location and even the spread of the pdfs for all seasons but summer, where the GCM
Figure 4. Percentage seasonal change in temperature projected under the 2070-2100 SRES A2 emissions scenario from the control period, 1961-1990, for two UK regions: North West England (black) and South East England (red). Notations for seasons are winter (DJF, December to February), spring (MAM, March—May), summer (JJA, June—August) and autumn (SON, September—November). The projection from the IPCC AR4 suite of 13 GCMs for all UK is shown in green for comparison.
Figure 5. The Eden catchment in northwest England (to Temple Sowerby). . Here, we use the same methodology as Kilsby et al. (2007b) to derive a suite of CFs for each of the six PRUDENCE RCMs for a catchment in northwest Using the calibrated hydrologic model, 100 synthetic 30-year daily flow sequences were then produced for the baseline and each of the six possible futures (one from
Figure 6. Projected percentage changes in flow statistics for the 2070-2100 period (change from 1961-1990): (a) mean flow, (b) standard deviation of flow, (c) 5th percentile of flow, (d) 95th percentile of flow. Seasonal change probabilities are given for winter (DJF, black), spring (MAM, red), summer (JJA, green) and autumn (SON, blue).
Figure 7. Analysis of downscaling literature using the ISI Web of Knowledge: ‘downscaling’ included in title or abstract
Table I. Comparative summary of the relative merits of statistical and dynamical downscaling techniques (adapted from Wilby and Wigley, 1997).
Table II. Examples of recent statistical downscaling studies. This list is not intended to be exhaustive but illustrative of the geographical distribution of downscaling studies and the methods employed. Abbreviations used in this table are: REG - linear regression methods, ANN - artificial neural networks, CCA — canonical correlation analysis, OTH — other, SCA -— scaling methods, SVD — singular value decomposition, WG — weather generators, WT — weather typing. For predictands, T — temperature, P — precipitaion, PE — potential evapotranspiration, H — humidity variables. performance of NCEP reanalysis variables in the sta- tistical downscaling of daily precipitation using ANNs and principal components analysis (PCA). Downscaling methods had the greatest skill in mid-latitude locations for the cool/dry season and showed the largest errors in the wet season. The poorest geographical performance was in the Tropics. However, this may be due to the dominance of convective processes which are harder to predict or due to poor quality of the reanalysis data in this region rather than deficiencies in downscaling method. example, the downscaling skill for mean daily temper- ature in central Europe was found to be dependent upon station elevation, with statistical downscaling methods showing more skill at higher elevation stations, and with increased skill at continental compared to mar- itime sites (Huth, 1999). In contrast, Kleinn et al. (2005) found that for dynamically downscaled and then bias- corrected precipitation and temperature outputs there was less skill at high elevations. Similarly, seasonal and geo- graphical differences in downscaling skill were noted by Cavazos and Hewitson (2005) who examined the
Table IV. Seasonal mean i values for the North West England region of the UK for the six selected regional climate models for (a) precipitation, and (b) temperature. Note that A values for all six models have been standardized to add to 1.0 for each season. (a) results are significantly less warm and less dry than the RCM results. they can be applied as such in the downscaling step. Since the Bayesian analysis produces joint posterior pdfs of the lambda parameters, we use the posterior mean of the distribution as our best estimate of model weights (Table IV).
descriptionView Paperarrow_downwardDownload
Sustainable bio-composites from renewable resources: opportunities and challenges in the green materials world
by Lawrence Drzal

2002, Journal of Polymers and the …

Sustainability, industrial ecology, eco-efficiency, and green chemistry are guiding the development of the next generation of materials, products, and processes. Biodegradable plastics and bio-based polymer products based on annually... more
Fig. 1. Concept of “sustainable” bio-based product.
Fig. 2. Carbon dioxide sequestration.
Fig. 3. Classification of natural/biofibers.
Fig. 4. Structure of cellulose. Plastics are lighter but are not fit for load-bearing application because of the lack of sufficient strength, stiffness, and dimensional stability. However, fibers pos- sess high strength and are sufficiently stiff but cannot be used for load-bearing applications because of their fibrous nature. In fiber-reinforced composites, the fibers serve as reinforcements by giving strength and stiffness to the composite structure. Natural/biofibers may be classified Biopolymers (biodegradable polymers; classifica- tion shown in Fig. 8) may be obtained from renewable resources, synthesized microbially, or synthesized from

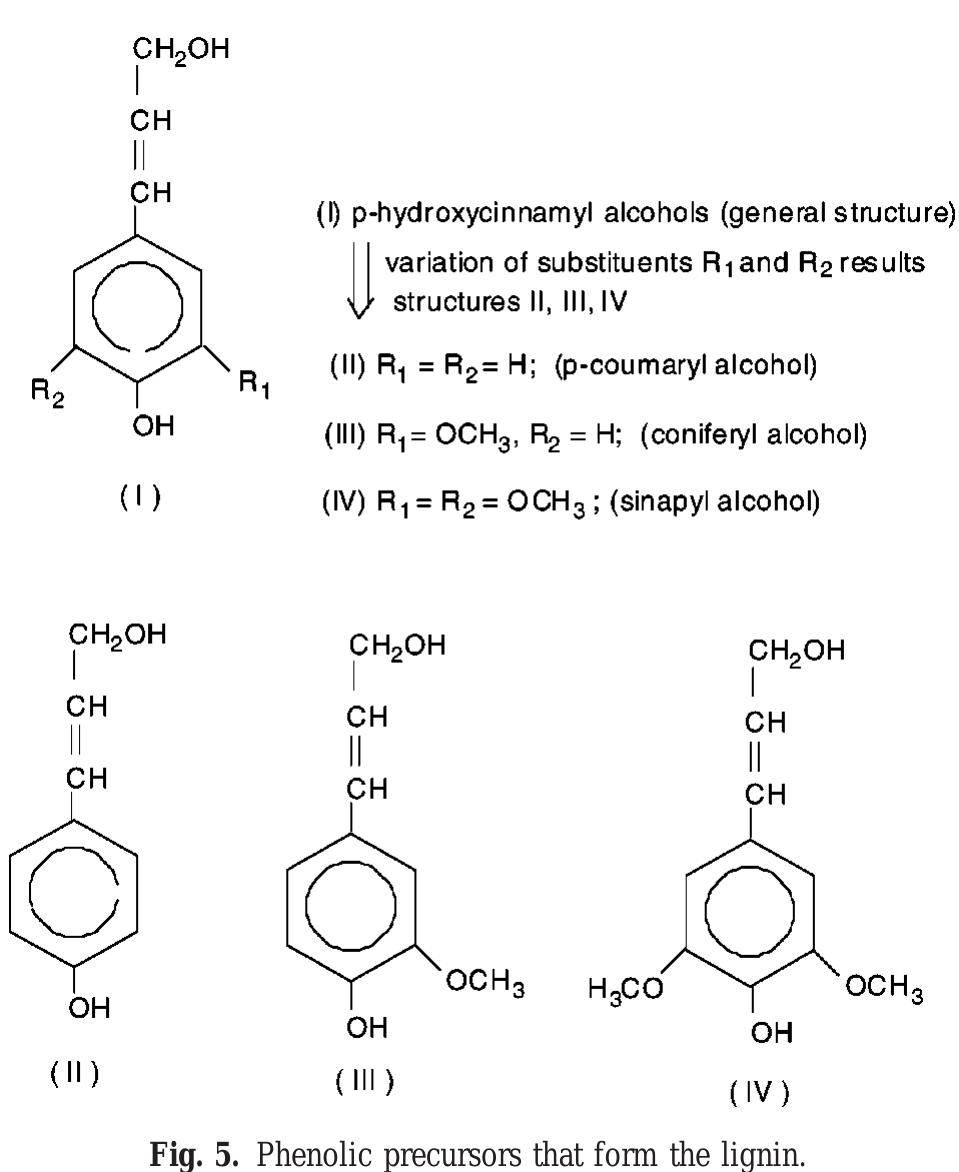

Fig. 5. Phenolic precursors that form the lignin.
Fig. 7. Modulus and specific modules: E-glass versus some natural fibers.
Fig. 9. Aliphatic polyesters— structure of some important biopolyesters.
n= 400-750; R= H (Celluiose), acetyl (Cellulose acetate), acetyland propionyl (cellulose acefat propionate), or acetyl and butyry! (Cellulose acetate butyrate)
Fig. 11. Classification of bio-composites.
Fig. 8. Classification of biopolymers. Biodegradable polymers need to be developed so as to make them suitable as matrix polymers for composite applications. Traditional plastics, such as polypropylene, polyethylene, polyester, and epoxy, have undergone con- siderable development and wide use in composite applica- tions. Originally, biopolymers were intended to be used in packaging industries, farming, and other applications with minor strength requirements. Performance limita- tions and the high cost of biopolymers are major barriers for their widespread acceptance as substitute for tradi- tional nonbiodegradable polymers. The high performance
Fig. 13. Concept on design of engineered natural/biofiber. The significant attraction of biofibers is their low cost; surface treatments that avoid using organic solvents i.e., water-based sizing, alkali treatment, and silane treatments, are logical approachs [29] to making reactive biofiber. Superior-strength bio-composites can be obtained through application of the reactive engineered natural fibers concept [30]. Design of engineered natural/ Biofiber is schematically represented in Fig. 13. Engi- neered biofibers are defined as the suitable blend of sur- face-treated bast (e.g., kenaf, hemp) and a leaf fiber (e.g., pineapple leaf fiber [PALF]). Selection of blends of bio- fibers is based on the fact that the correct blend achieves
Fig. 12. Challenges to fabricate superior bio-composites.
Fig. 14. Reacter of biofiber and maleated polymer— mechanism for compatibilization.
Table I. Modulus Comparison of E-Glass and Some Important Natural Fibers
descriptionView Paperarrow_downwardDownload
A literature and practice review to develop sustainable business model archetypes
by Nancy Bocken and
1 more
Steve Evans

2014, Journal of Cleaner Production

Eco-innovations, eco-efficiency and corporate social responsibility practices define much of the current industrial sustainability agenda. While important, they are insufficient in themselves to deliver the holistic changes necessary to... more
descriptionView Paperarrow_downwardDownload
Acid mine drainage remediation options - a review JOHNSON 20
by Machuki Jr.
Acid mine drainage (AMD) causes environmental pollution that affects many countries having historic or current mining industries. Preventing the formation or the migration of AMD from its source is generally considered to be the... more
Fig. 2. Layout of a “dry cover” for minimising production of mine spoil effluents. Underwater storage has been used for disposing and storing mine tailings that are potentially acid- producing (Li et al., 1997). Again, the objective is to prevent contact between the minerals and dissolved oxygen. Shallow water covers may be used, and their Another suggested approach for minimising AML production is to blend acid-generating and acid consuming materials, producing environmentally benign composites (Mehling et al., 1997). A varian on this theme is to add solid-phase phosphates (sucl as apatite) to pyritic mine waste in order to precipitate iron (III) as ferric phosphate, thereby reducing it: potential to act as an oxidant of sulfide minerals However, inhibition of pyrite oxidation using thi:
Fig. 1. Various approaches that have been evaluated to prevent or minimise the generation of mine drainage waters.
Fig. 3. Biological and abiotic strategies for remediating acid mine drainage waters. Finally, in as much as lithotrophic (“rock eating”) iron- and sulfur-oxidising bacteria have a pivotal role in generating AMD, various laboratory- and field- scale tests using biocides have been carried out to inhibit their activities in mineral spoils and tailings. This has generally involved the application of anionic surfactants such as sodium dodecyl sulfate (SDS), which are highly toxic to this group of microorgan- isms. However, the effectiveness of biocide applica- tions has been found to be highly variable affording, Given the practical difficulties entailed in inhibit- ing the formation of AMD at source, often, the only alternative is to minimise the impact that this polluting water has on receiving streams and rivers, and the wider environment; such an approach involves “migration control” measures. Quite often, these have been divided into “active” and “passive” processes, the former generally (though not exclusively) referring to the continuous application of alkaline materials to neutralise acidic mine waters and precipitate metals, and the latter to the use of natural and constructed wetland ecosystems. Passive systems have the advant- age of requiring relatively little maintenance (and recurring costs) than active systems, although they may be expensive and/or impractical to set up in the first place. In reality, all “passive” treatment technol- ogies require a certain amount of maintenance costs. A more useful subdivision is between those remedia- tion technologies that rely on biological activities and
Fig. 4. Abiotic ferrous iron oxidation as a function of pH, calculated from Stumm and Morgan (1981) for an aqueous solution of 10 mM ferrous iron containing 8 mg O,/l. arsenic, originating primarily from the oxidative dissolution of arsenopyrite (FeAsS) present in mine waste materials. Soluble arsenic, which is present mostly as anionic As (V) (AsO?) in mine waters, may be removed mainly by adsorption onto positively charged ferric iron colloids and, in theory, by the formation of scorodite (FeAsO,). Interestingly, nove strains of Thiomonas-like bacteria that oxidise arsenic (III) to arsenic (V), as well as oxidising ferrous iron and reduced sulfur compounds, have been isolated from mine waters (Battaglia-Brunet et al., 2002; Coupland et al., 2003). These bacteria probably contribute to removal of arsenic in these waters and have potential for use in fixed bed bioreactor systems similar to those described in Section 4.6 for the oxidation and precipitation of iron.

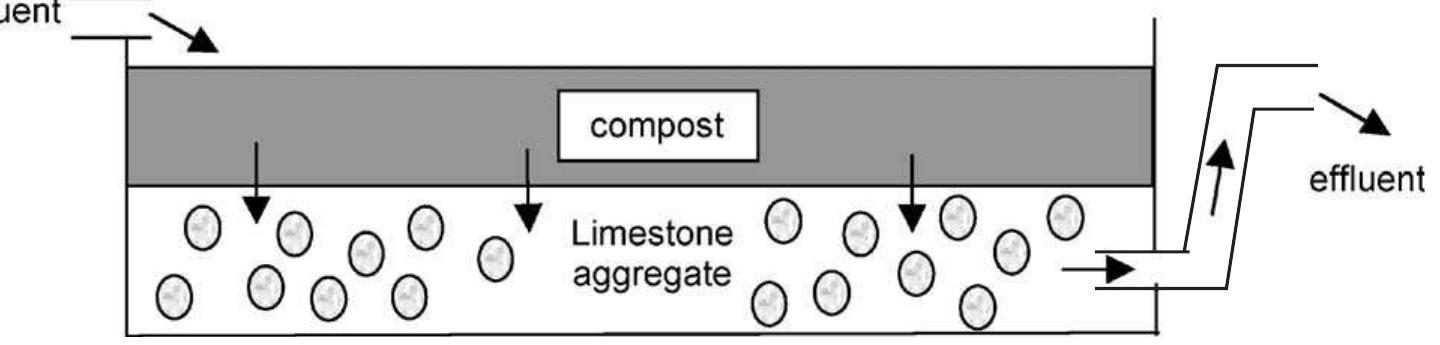

Fig. 5. Schematic layout of a reducing and alkalinity producing system (RAPS), redrawn after Younger et al. (2003). Water flowing through the compost layer is stripped of dissolved oxygen, while both this layer and the underlying limestone add alkalinity to the AMD. i I a a “An important engineering variant on the basic compost bioreactor theme is the reducing and alkalinity producing system (RAPS) layout (Younger et al., 2003), which is also referred to as successive alkalinity producing system (SAPS; Kepler and McCleary, 1994). In this type of system (Fig. 5), AMD flow moves downwards through a layer of Permeable reactive barriers (PRBs) are being used increasingly to treat a wide range of polluted ground- waters. Those that have been installed to bioremediate AMD operate on the same basic principles as compost bioreactors, described in Section 4.3 (Benner et al., 1997). Construction of PRBs involves digging of a trench or pit in the flow path of contaminated groundwater, filling the void with reactive materials
