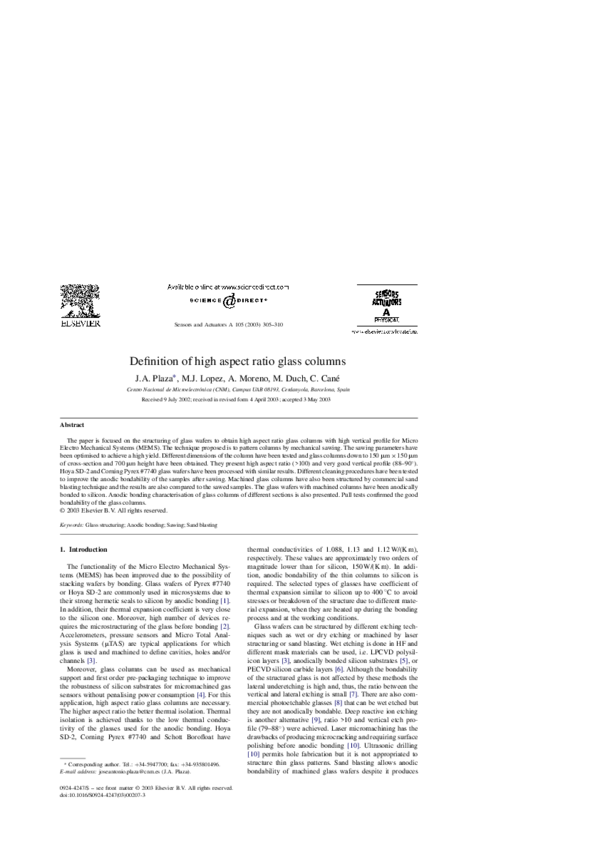

Definition of high aspect ratio glass columns
Jose Plaza2003, Sensors and Actuators A: Physical
Sign up for access to the world's latest research
checkGet notified about relevant papers
checkSave papers to use in your research
checkJoin the discussion with peers
checkTrack your impact
Abstract
The paper is focused on the structuring of glass wafers to obtain high aspect ratio glass columns with high vertical profile for Micro Electro Mechanical Systems (MEMS). The technique proposed is to pattern columns by mechanical sawing. The sawing parameters have been optimised to achieve a high yield. Different dimensions of the column have been tested and glass columns down to 150 m × 150 m of cross-section and 700 m height have been obtained. They present high aspect ratio (>100) and very good vertical profile (88-90 • ). Hoya SD-2 and Corning Pyrex #7740 glass wafers have been processed with similar results. Different cleaning procedures have been tested to improve the anodic bondability of the samples after sawing. Machined glass columns have also been structured by commercial sand blasting technique and the results are also compared to the sawed samples. The glass wafers with machined columns have been anodically bonded to silicon. Anodic bonding characterisation of glass columns of different sections is also presented. Pull tests confirmed the good bondability of the glass columns.
